The Sugarmill Cab
The Sugarmill is our standard residential elevator cab style.
This highly customizable cab features flush walls, standard white ceiling, single recessed light, silver folding accordion gate with clear acrylic panels, brushed stainless steel handrail and fixtures.
Specs
- Capacity – 750lbs – 950lbs
- Speed – 40 FPM
- Travel – 50’ Maximum
- Platform – Up to 15 sq. ft.
- Shaft – 52”w x 54” Pit 12”**
- Overhead – 9’0” Recommended for 8' cab
- Landings – 6 Maximum
- Car Openings – 1 to 3
- Door Size – 36” x 80” or 36” x 96”**
- Door Type – Swing solid core**
- Operation – Automatic
- Power Supply – 220 Volt, Single phase, 30 Amp 120 Volt, 15 Amp cab light **
- Live phone line**
- Landing – Magnetic Tape Selector/Limits
- Pump – Screw pump
- Valve – Two speed, four coil
- Emergency Lowering – Standard
- Interlocks – EMI
- Gate Operation – Manual
- Door Operation – Manual
- Sling – Formed steel
- Brackets – Formed steel
- Rails – 8 lb. Machined T-rail
- Cables – (2) 3/8 Aircraft cables
- Hydraulics – 2 ¾” Plunger
- Plan View / Configuration
- Machine Room & Electrical
- Rail Walls
- Doors
**These services are performed by 3rd party contractors
Upgrade Options
accordion Gates

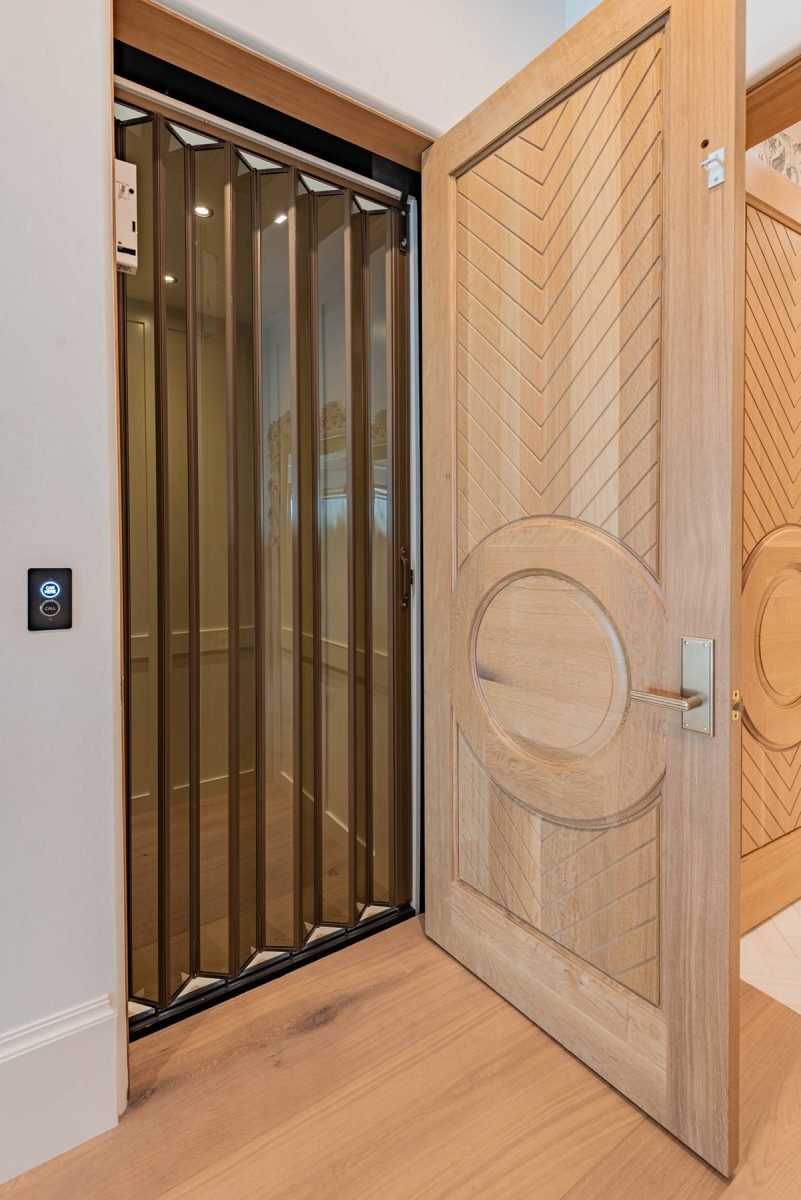

Bronze frame with smoked acrylic
Clear acrylic (standard), smoked acrylic, hardwood veneers, solid aluminum, perforated aluminum
SCISSOR Gates AND COMMERCIAL 2-SPEED
Scissor gates available in black, silver, dark bronze, and gold
Ceiling
Flush wood veneer (Shown in paint grade with brushed stainless light.)

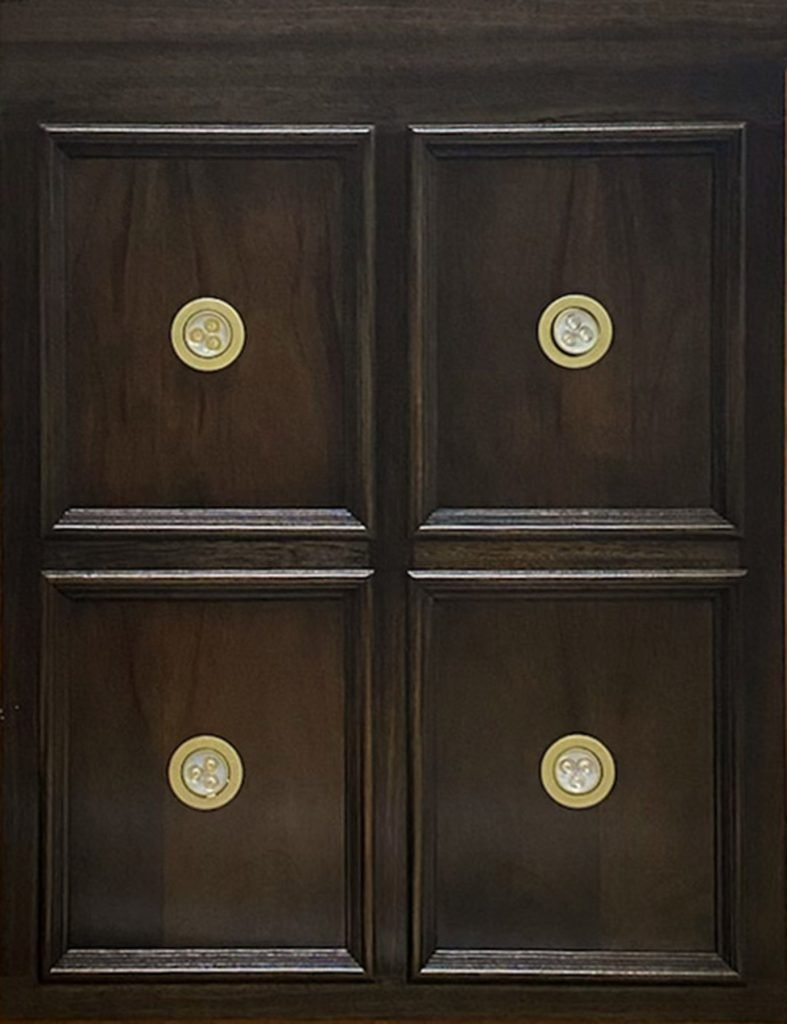

Raised panel ceiling (Plantation cab style ceiling)
Flush wood veneer ceiling with single 3″ mini light. (Upgrade – raised panel ceiling with four, 3″ mini lights)
Lighting
3″ recessed LED with your option of upgraded trim color.
Handrails
Available in brushed stainless steel, brushed brass, dark bronze, or hardwood.
CAR OPERATING PANEL
Available in brushed stainless steel, brushed brass, dark bronze.
Optional Features:
- Automatic gate operator(s)
- Automatic swing door operator(s)
- Keylock access
Standard Options
Walls
Select wood type
Gate
Silver or Bronze framed folding gate with clear acrylic panels
Finish
– Unfinished raw natural wood
– Natural wood with semi-gloss
clear coat
CAR OPERATING PANEL
Brushed stainless steel with integrated phone dialer
Lighting
with silver trim
premium hardwood Handrails
METAL HANDRAILS
Standard, flat brushed stainless steel
Ceiling
White laminate ceiling
